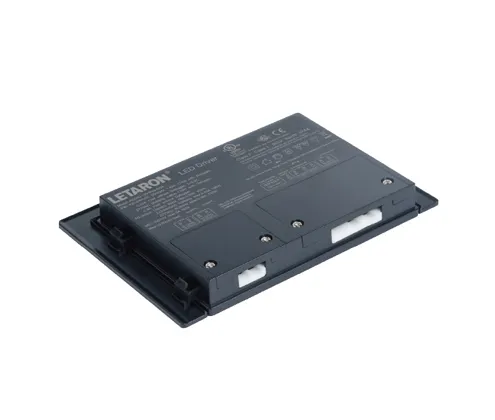

Global IP44 LED Driver （defogging）

Name: Global IP44 LED Driver （defogging）
Brand: Chalaat Photoelectric Technology (Thailand) Co.,Ltd.

Product Features

Short circuit, overload, overvoltage protection

Supports Defogging, Dimming, and CCT

Class 2(Does not include 80W)

30,000 Hours Warranty

Waterproof: lP44

Get a Quote

Specifications of Global IP44 LED Driver （defogging）

Type		Bathroom LED Driver
Name		Global IP44 LED Driver （defogging）：AED30-12VIP44-SGA
Size		148x101.4x17.5mm
Input Frequency		50/60Hz
Onput Current		2500mA
PF		>0.9
Power		30W/60W/80W/90W
Rated input Voltage		120-277VAC
Certification		CE /ENEC/ UL/CUL/SAA/UKCA
Logo		Customized logo available

Details of Global IP44 LED Driver （defogging）

Art No.	Output Voltage	Output Current	Maximum Output Power	Rated Input Voltage	Input Frequency	Power Factor	Efficiency	Dimensions (mm)
AED30-12VIP44-SGA	12VDC	2500mA	30W	120-277VAC	50/60Hz	≥0.9	86%	L148×W101.4×H17.5
AED30-24VIP44-SGA	24VDC	1250mA	30W	120-277VAC	50/60Hz	≥0.9	86%@120V 85%@230V	L148×W101.4×H17.5
AED60-12VIP44-SGA	12VDC	5000mA	60W	120-277VAC	50/60Hz	≥0.9	88%	L168.3×W105.4×H17.5
AED60-24VIP44-SGA	24VDC	2500mA	60W	120-277VAC	50/60Hz	≥0.9	88%	L168.3×W105.4×H17.5
AED80-12VIP44-SGA	12VDC	6670mA	80W	120-277VAC	50/60Hz	≥0.9	89%@120V 90%@230V	L195×W105.4×H17.5
AED90-24VIP44-SGA	24VDC	3750mA	90W	120-277VAC	50/60Hz	≥0.9	90%@120V 91%@230V	L195×W105.4×H17.5

FAQs of Global IP44 LED Driver （defogging）

 

All of our LED driver power supplies have passed the most rigorous international certifications, including UL, FCC, CE, TUV, SAA, and a full range of UL Listed/CUl . Listed and FCC certified products,etc

What is the minimum order quantity (MOQ)?

 

For the standard item, our MOQ is 500 pieces. But for large orders or long-term partners, we can offer more flexible MOQ options. Feel free to contact us for more details.

What are your terms of payment?

 

FOB/EXW,30% deposit, 70% T/T before shipment.

Are you factory or trading company?

 

We are a professional manufacturer .Chalaat was founded in 2023, Samut Prakan Province of Thailand . With advanced technology in LED lighting, super slim driver, and advanced mirror glass processing equipment, with a team of rich experience (over 16 years) in manufacturing lit mirror, LED lighting, we are dedicated to supply high quality LED lit mirrors, lighting products, and LED drivers, to all over the world from Thailand.

Chalaat welcomes OEM and ODM orders that covers LED drivers, Furniture lighting,LED mirrors(bathroom mirrors,makeup mirrors, dressing mirrors),and related products. We have the ability to design, test, manufacture, and ship hundreds of SKUs each year.
