Utilizing the most advanced nitride semiconductor design, conversion eficiency reaches up to 89%, achieving high P without flickering;
Ultra-thin design, 60W power supply thickness as thin as 12.5mm;
lnteligent integration, integrating Wifi+2.4G+Bluetooth+wired four control modes, while supporting single and dua-color control options.

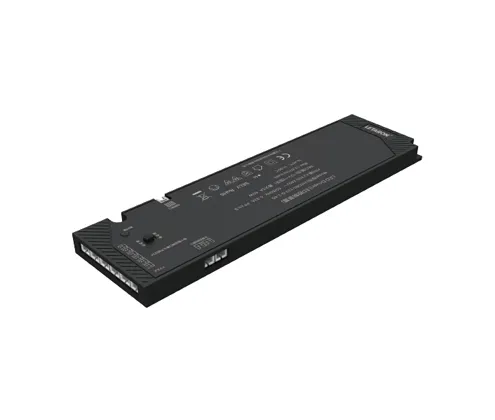

| Type | Cabinet LED Driver | |||
| Name | HSD Ultra-thin Smart LED Driver：HSD60-12V-S | |||
| Size | 216x60x12.5mm | |||
| Input Frequency | 50/60Hz | |||
| Onput Current | 5A | |||
| PF | >0.9 | |||
| Power | 60W | |||
| Rated input Voltage | 220-240VAC | |||
| Certification | CE/CCC/RoHS | |||
| Logo | Customized logo available | |||
| Model | Rated Power | Output Voltage | Output Current | Rated Input Voltage | Input Frequency | Power Factor | Efficiency | Size |
| HSD60-12V-S | 60W | 12VDC | 5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 216x60x12.5mm |
| HSD60-24V-S | 60W | 24VDC | 2.5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥89% | 216x60x12.5mm |
| HSD60-12V-S-2.4G | 60W | 12VDC | 5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 216x60x12.5mm |
| HSD60-24V-S-2.4G | 60W | 24VDC | 2.5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥89% | 216x60x12.5mm |
| HSD60-12V-S-IOT | 60W | 12VDC | 5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 216x60x12.5mm |
| HSD60-24V-S-IOT | 60W | 24VDC | 2.5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥89% | 216x60x12.5mm |
All of our LED driver power supplies have passed the most rigorous international certifications, including UL, FCC, CE, TUV, SAA, and a full range of UL Listed/CUl . Listed and FCC certified products,etc
For the standard item, our MOQ is 500 pieces. But for large orders or long-term partners, we can offer more flexible MOQ options. Feel free to contact us for more details.
FOB/EXW,30% deposit, 70% T/T before shipment.
We are a professional manufacturer .Chalaat was founded in 2023, Samut Prakan Province of Thailand . With advanced technology in LED lighting, super slim driver, and advanced mirror glass processing equipment, with a team of rich experience (over 16 years) in manufacturing lit mirror, LED lighting, we are dedicated to supply high quality LED lit mirrors, lighting products, and LED drivers, to all over the world from Thailand.
Chalaat welcomes OEM and ODM orders that covers LED drivers, Furniture lighting,LED mirrors(bathroom mirrors,makeup mirrors, dressing mirrors),and related products. We have the ability to design, test, manufacture, and ship hundreds of SKUs each year.
