GB/T19510 latest LED control device standard products feature high PF values, meet electromagnetic compatibility (EMC) requirements,and are safe and reliable to use;

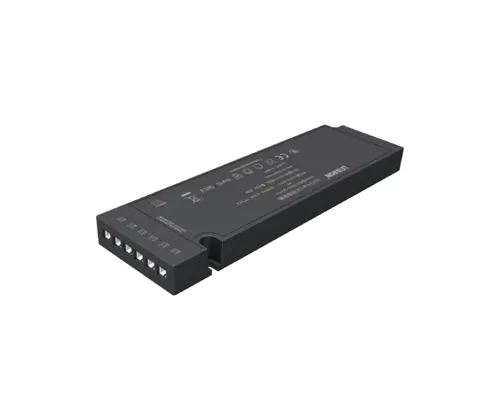

The LSD driver power supply series includes four specifications: 15W, 24w, 36W, and 60w, The entire series has a thickness of 16.5mm andfeatures a 6-pin output interface, offering a thinner and more streamlined design;
Two output interface options are available: black and white. The black interface has a positive terminal on the let and a negative terminalon the right, while the white interface has a negative terminal on the left and a positive terminal on the right;
The entire series provides full power output with no exaggerated specifications. it includes overvoltage, overcurent, short-circuit, andlightning protection.
| Type | Cabinet LED Driver | |||
| Name | LSD Ultra-Thin “T” Series LED Driver：AQB15-12V | |||
| Size | 117x48x16.5mm | |||
| Input Frequency | 50/60Hz | |||
| Onput Current | 1.25A | |||
| PF | >0.9 | |||
| Power | 15W/24W/36W/60W | |||
| Rated input Voltage | 220-240VAC | |||
| Certification | CE/CCC/RoHS | |||
| Logo | Customized logo available | |||
| Model | Rated Power | Output Voltage | Output Current | Rated Input Voltage | Input Frequency | Power Factor | Efficiency | Size |
| AQB15-12V | 15W | 12VDC | 1.25A | 220-240VAC | 50/60Hz | ≥0.9 | ≥82% | 117x48x16.5mm |
| AQB24-12V | 24W | 12VDC | 1.8A | 220-240VAC | 50/60Hz | ≥0.9 | ≥85% | 117x48x16.5mm |
| LSD36-12V-T | 36W | 12VDC | 3A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 145x59x16.5mm |
| LSD36-24V-T | 36W | 24VDC | 1.5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 145x59x16.5mm |
| LSD60-12V-T | 60W | 12VDC | 5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥87% | 198x59x16.5mm |
| LSD60-24V-T | 60W | 24VDC | 2.5A | 220-240VAC | 50/60Hz | ≥0.9 | ≥88% | 198x59x16.5mm |
All of our LED driver power supplies have passed the most rigorous international certifications, including UL, FCC, CE, TUV, SAA, and a full range of UL Listed/CUl . Listed and FCC certified products,etc
For the standard item, our MOQ is 500 pieces. But for large orders or long-term partners, we can offer more flexible MOQ options. Feel free to contact us for more details.
FOB/EXW,30% deposit, 70% T/T before shipment.
We are a professional manufacturer .Chalaat was founded in 2023, Samut Prakan Province of Thailand . With advanced technology in LED lighting, super slim driver, and advanced mirror glass processing equipment, with a team of rich experience (over 16 years) in manufacturing lit mirror, LED lighting, we are dedicated to supply high quality LED lit mirrors, lighting products, and LED drivers, to all over the world from Thailand.
Chalaat welcomes OEM and ODM orders that covers LED drivers, Furniture lighting,LED mirrors(bathroom mirrors,makeup mirrors, dressing mirrors),and related products. We have the ability to design, test, manufacture, and ship hundreds of SKUs each year.
