Flicker-Free Output
Short circuit, overload, overvoltage protection
Integrated design of switch, LED driver and relay
Built-in Output Cable
100% Full Load Aging Test
Class 2
30,000 Hours Warranty
Waterproof: lP44
| Type | Bathroom LED Driver | |||

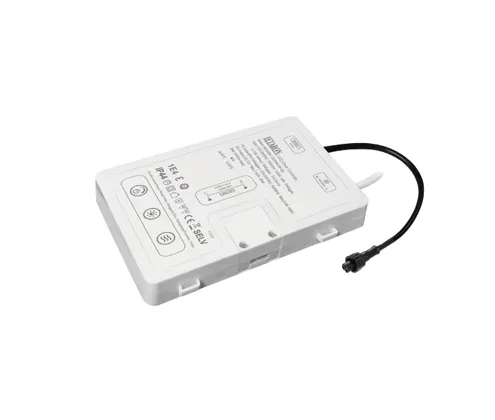

| Name | Mini Intergrated Led driver(Defogging+touch+Flicker-Free)：AED20M-12VP44-3A-Q3 | |||
| Size | 169x128.5x20mm | |||
| Input Frequency | 50/60Hz | |||
| Onput Current | 2500mA | |||
| PF | >0.9 | |||
| Power | 30W | |||
| Rated input Voltage | 220-240VAC | |||
| Certification | CE/TUV/ENEC/UKCA/ERP | |||
| Logo | Customized logo available | |||
| Art No. | Output Voltage | Output Current | Maximum Output Power | Rated Input Voltage | Input Frequency | Power Factor | Efficiency | Dimensions (mm) |
| AED20M-12VIP44-3A-Q3 | 12VDC | 1670mA | 20W | 220-240VAC | 50/60Hz | ≥0.8 | 85% | L169×W128.5×H20 |
| AED20M-24VIP44-3A-Q3 | 24VDC | 830mA | 20W | 220-240VAC | 50/60Hz | ≥0.8 | 85% | L169×W128.5×H20 |
| AED30M-12VIP44-3A-Q3 | 12VDC | 2500mA | 30W | 220-240VAC | 50/60Hz | ≥0.9 | 88% | L169×W128.5×H20 |
| AED30M-24VIP44-3A-Q3 | 24VDC | 1250mA | 30W | 220-240VAC | 50/60Hz | ≥0.9 | 88% | L169×W128.5×H20 |
All of our LED driver power supplies have passed the most rigorous international certifications, including UL, FCC, CE, TUV, SAA, and a full range of UL Listed/CUl . Listed and FCC certified products,etc
For the standard item, our MOQ is 500 pieces. But for large orders or long-term partners, we can offer more flexible MOQ options. Feel free to contact us for more details.
FOB/EXW,30% deposit, 70% T/T before shipment.
We are a professional manufacturer .Chalaat was founded in 2023, Samut Prakan Province of Thailand . With advanced technology in LED lighting, super slim driver, and advanced mirror glass processing equipment, with a team of rich experience (over 16 years) in manufacturing lit mirror, LED lighting, we are dedicated to supply high quality LED lit mirrors, lighting products, and LED drivers, to all over the world from Thailand.
Chalaat welcomes OEM and ODM orders that covers LED drivers, Furniture lighting,LED mirrors(bathroom mirrors,makeup mirrors, dressing mirrors),and related products. We have the ability to design, test, manufacture, and ship hundreds of SKUs each year.
